This page is built to answer the questions that actually matter once you have an Irregular Design Group suppressor in hand: what goes together, what good mounting feels like, what to watch for during break-in, and why this system behaves differently than a conventional can.
Think of it less like a help-center article and more like a guided walk-through from the people who designed the system. The goal is simple: get your rifle set up correctly, get your expectations right, and keep you from making avoidable mistakes.
If this is your first time mounting the system, do not start with internet folklore. Start with clean parts, correct torque, proper taper engagement, and a short validation sequence.
If everything feels right here, the rest of the experience usually falls into place.

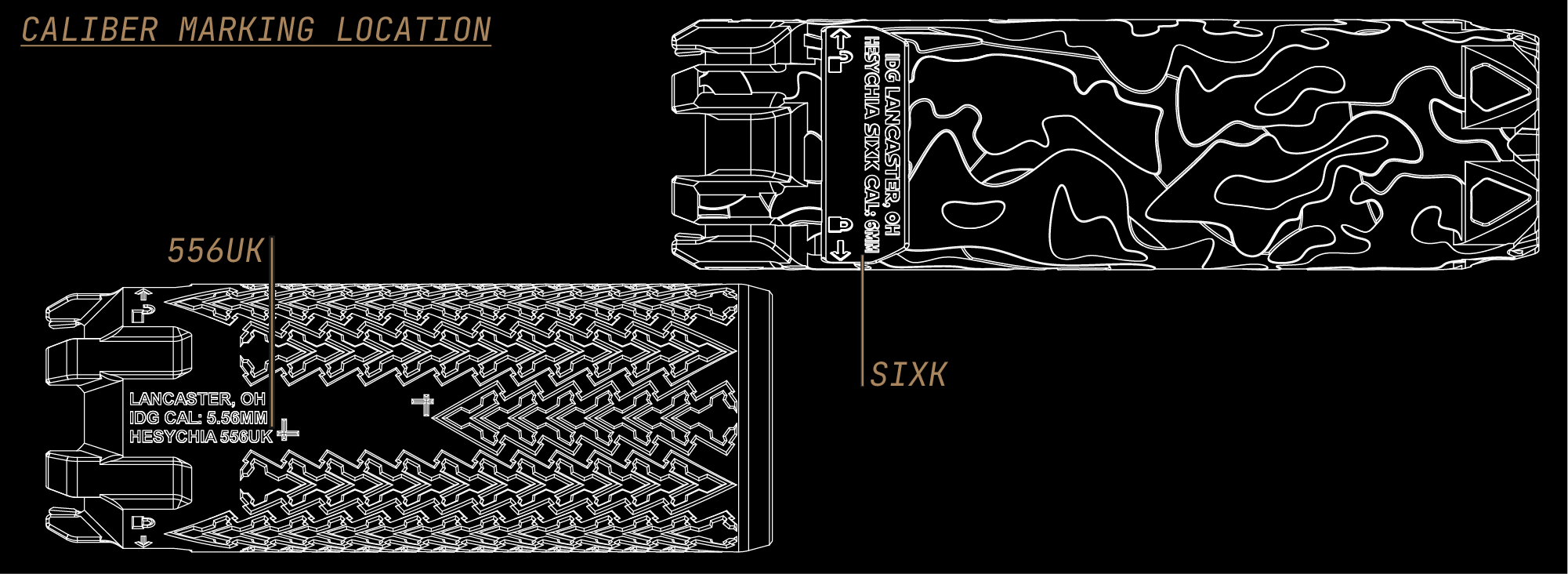

Only shoot up to the caliber engraved on the suppressor. Do not "close enough" your way into a bad day.

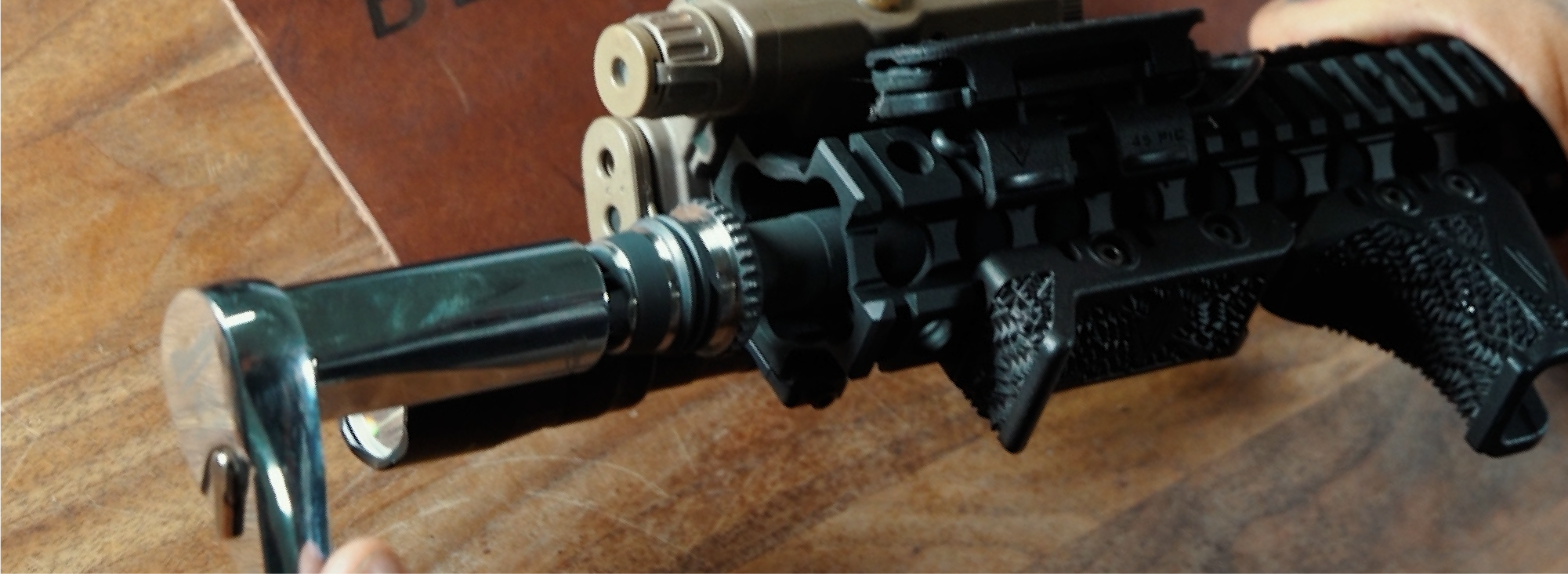

Hard stop itemInstall the muzzle device to the barrel at 30 ft-lbs. On IDG systems, timing is not required for the HFH or Flow Enhancers, and threadlocker is not normally required under standard installation.

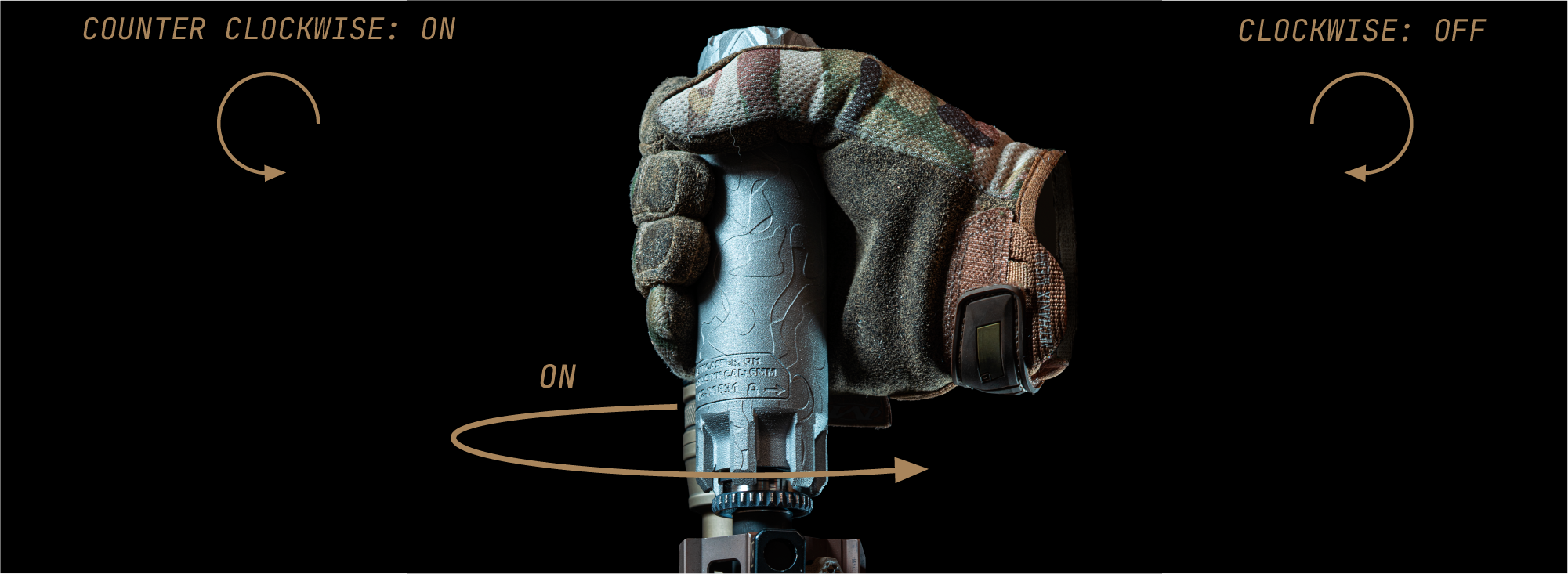

30 ft-lbs at the barrelBefore mounting, make sure the taper and mating surfaces are clean. The suppressor should seat on the taper, not hang up on dirt, debris, or a false stop.

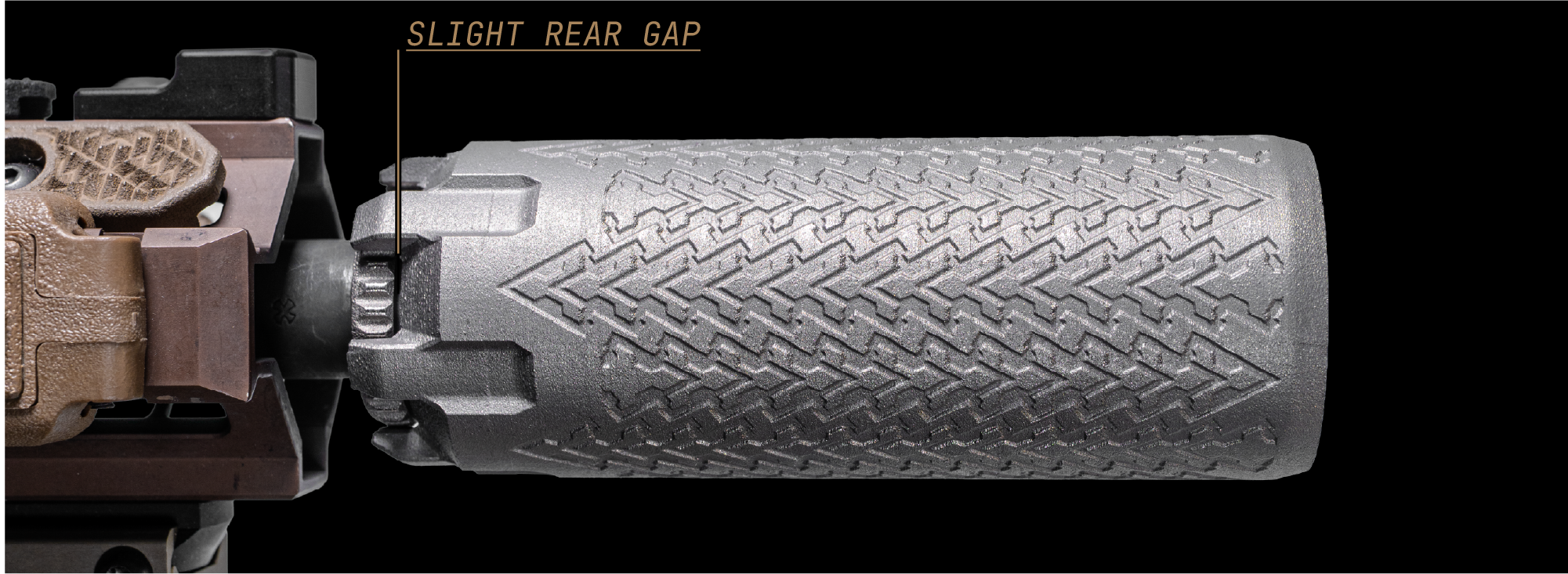

When correctly mounted, a slight rear gap should remain. If there is no rear gap, the suppressor may be bottoming on the ring face instead of properly loading the taper.
New systems should be mounted, seated, removed, and repeated for roughly 5 to 7 cycles. That initial wear-in helps the interfaces settle the way they were designed to.
Fine metallic particles during this phase can be normal. What matters is that the interface starts to feel cleaner and more repeatable with each cycle.

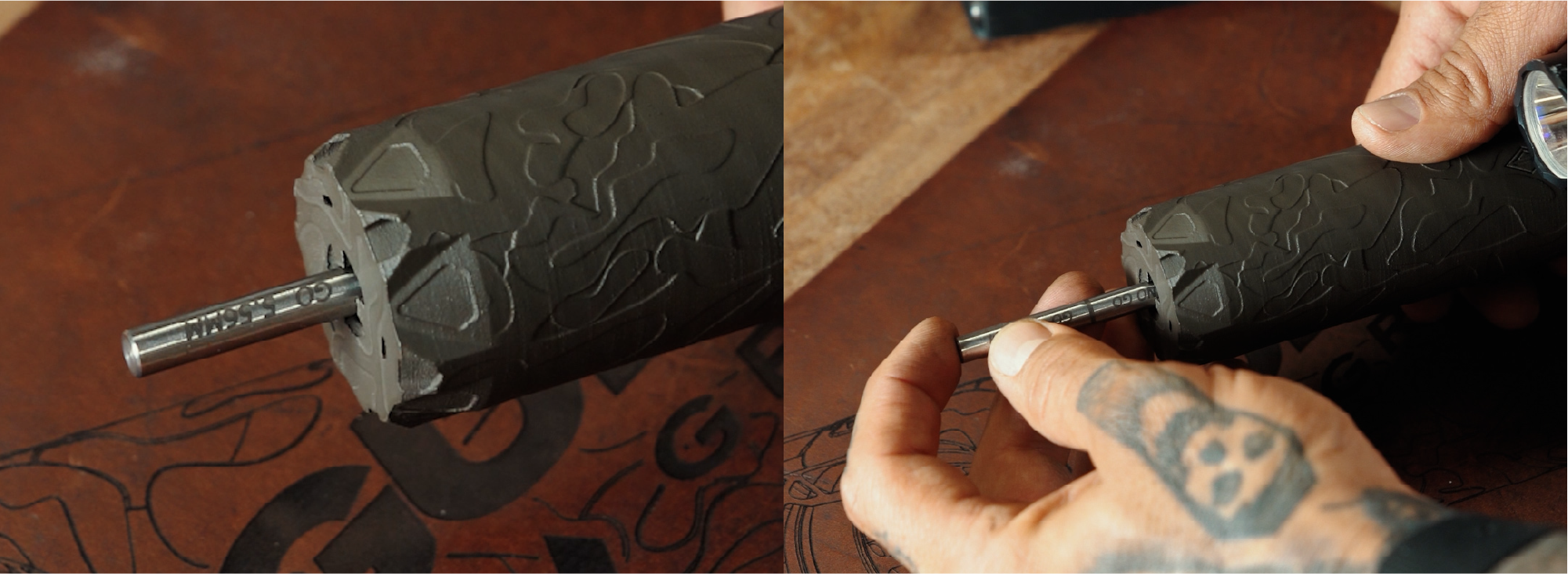

Use an alignment rod if you have one. If not, do a careful visual field check and confirm that nothing looks eccentric, canted, or questionable.
If anything looks wrong, stop there. Don't send a "just one round" confirmation shot into a setup you do not trust.
Start with a short test fire, then inspect. You are looking for stable mounting, normal recoil impulse, no evidence of walk-off, and no indication that the host or can is doing something unexpected.

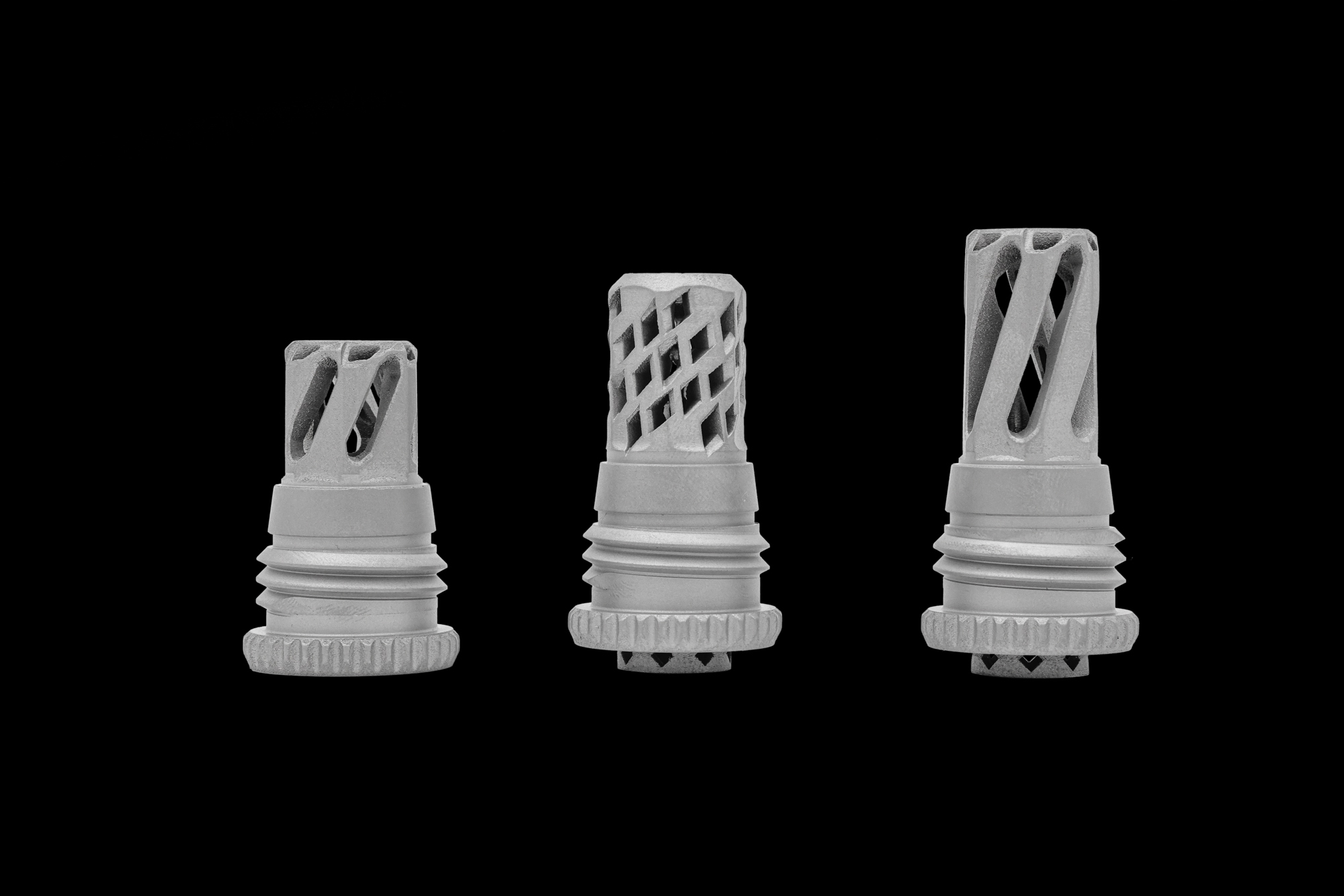

Short test, then inspectMost people do not need more options. They need the right options filtered through the way the rifle is actually going to be used.
If the host will spend real time both suppressed and unsuppressed, that points one way. If the rifle is basically going to live with a can on it, that points another.
If the rifle needs to behave well both with and without the suppressor, the Hybrid Flash Hider is usually the cleaner answer. It gives you a stronger unsuppressed flash outcome than a suppressor-dedicated flow device and makes the host feel less like a one-mode rifle.
This is the setup logic for the shooter who actually takes the can off sometimes and expects the rifle to still make sense when that happens.
This is where the Flow Enhancer logic makes the most sense. These parts give up unsuppressed flash behavior in exchange for better suppressed behavior, because they are intended for rifles that are realistically going to stay suppressed.
If the host is built around suppressed performance first, that tradeoff usually makes perfect sense.
On compact rifles, especially where gas behavior matters a lot to the shooter, the conversation becomes less about catalog theory and more about host behavior, mounting consistency, and choosing the suppressor / device combination that supports lower gas-to-face behavior.
Our gas management strategy works by getting control of gas flow early, not by simply trapping more pressure. That is why these systems tend to feel different than conventional high-back-pressure cans.
The Hesion Bow HUB Adapter is for HUB suppressor configurations only. It is not a general fallback answer for every product pairing.
If HUB flexibility is part of your host plan, start with the suppressors that are actually built to support that path instead of trying to reverse-engineer compatibility after the fact.

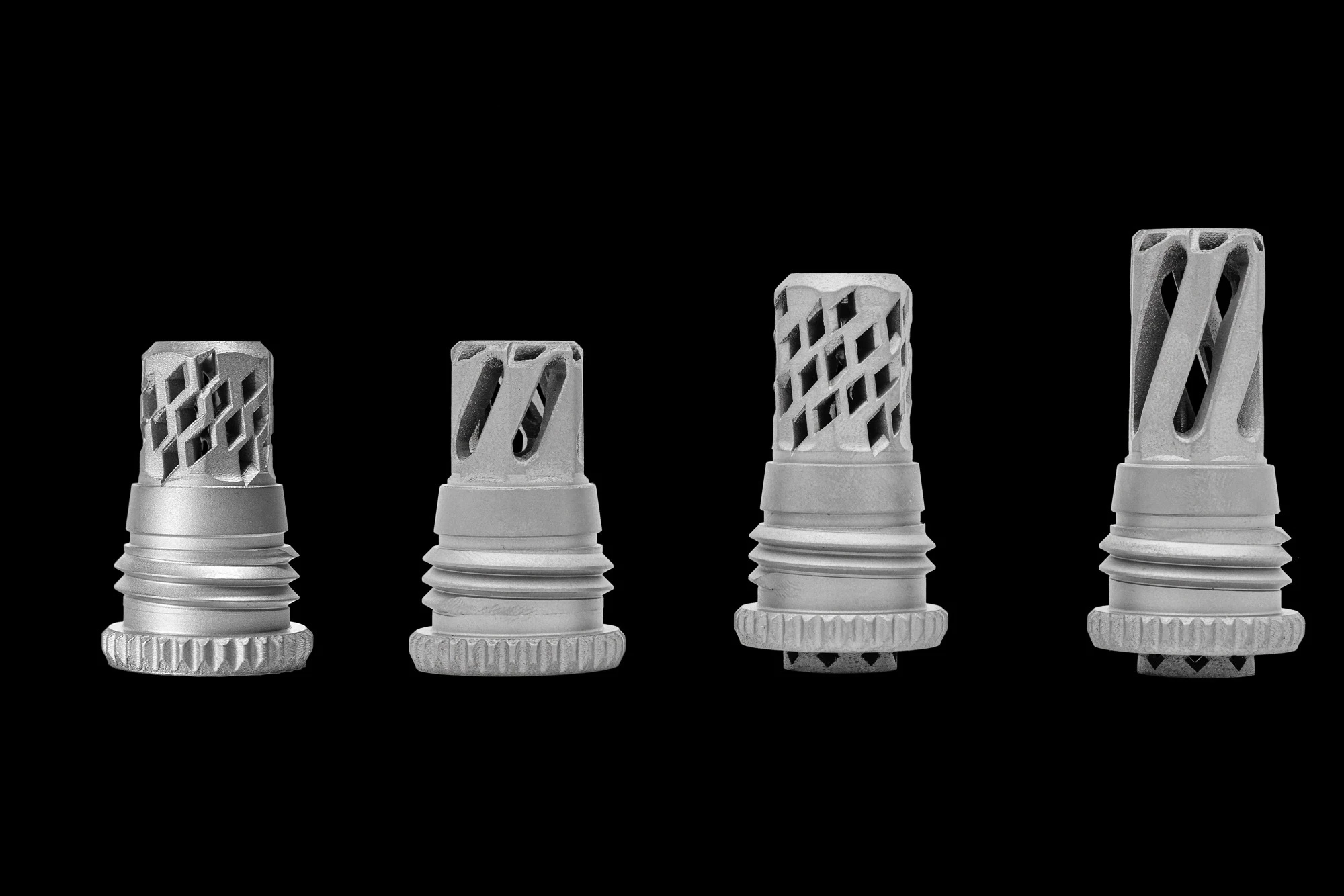

Compatibility mistakes are one of the easiest ways to turn a good system into a frustrating one. This table is here to make the pairing logic obvious before money or time gets wasted.
| Suppressor | Compatible Options | Best Use Logic | Notes |
|---|---|---|---|
| Hesychia SIXK | HFHMicro FEMacro FE | Strong for mixed-use or suppressor-dedicated setups depending on device choice. | Macro FE is valid here. |
| Hesychia SIXK-H | HFHMicro FEMacro FEHesion Bow HUB Adapter | Flexible option if HUB compatibility is part of the plan. | Macro FE still applies; HUB path also opens here. |
| Hesychia 556UK | Micro FE only | Suppressor-dedicated style logic with Micro FE only. | No HFH. No Macro FE. |
| Hesychia 556UK-H | HFHMicro FEHesion Bow HUB Adapter | Good if you want 556UK-H plus either mixed-use logic or HUB support. | No Macro FE here. |
The point of this section is not to bury the reader in jargon. It is to explain why the system feels the way it feels when everything is working correctly, and why it does not behave like a conventional high-back-pressure suppressor.
The taper plus left-hand buttress thread is the primary structural lock. The Hesion Bow is the redundant retention system layered on top of that.
It uses 6 flexure pawls and 32 locking scallops. Because 6 and 32 share no common divisor, at least one pawl is always loaded, which is why the interface is designed to produce zero backlash.
Our lower-back-pressure behavior comes from what the system does with gas early, not from simply trapping more of it. Flow Enhancers route gas aggressively into annular and helix paths to help pull combustion gases forward instead of letting pressure stack up the way conventional designs often do.
LPBF is not a buzzword in this system. It is central to the product because it enables internal geometry that conventional machining cannot realistically create. These suppressor structures are monolithic printed bodies with critical interfaces machined afterward.
These systems are built for long service life under realistic firing schedules, but there are still obvious ways to shorten the life of any rifle suppressor if the host or use pattern ignores basic mechanical reality.

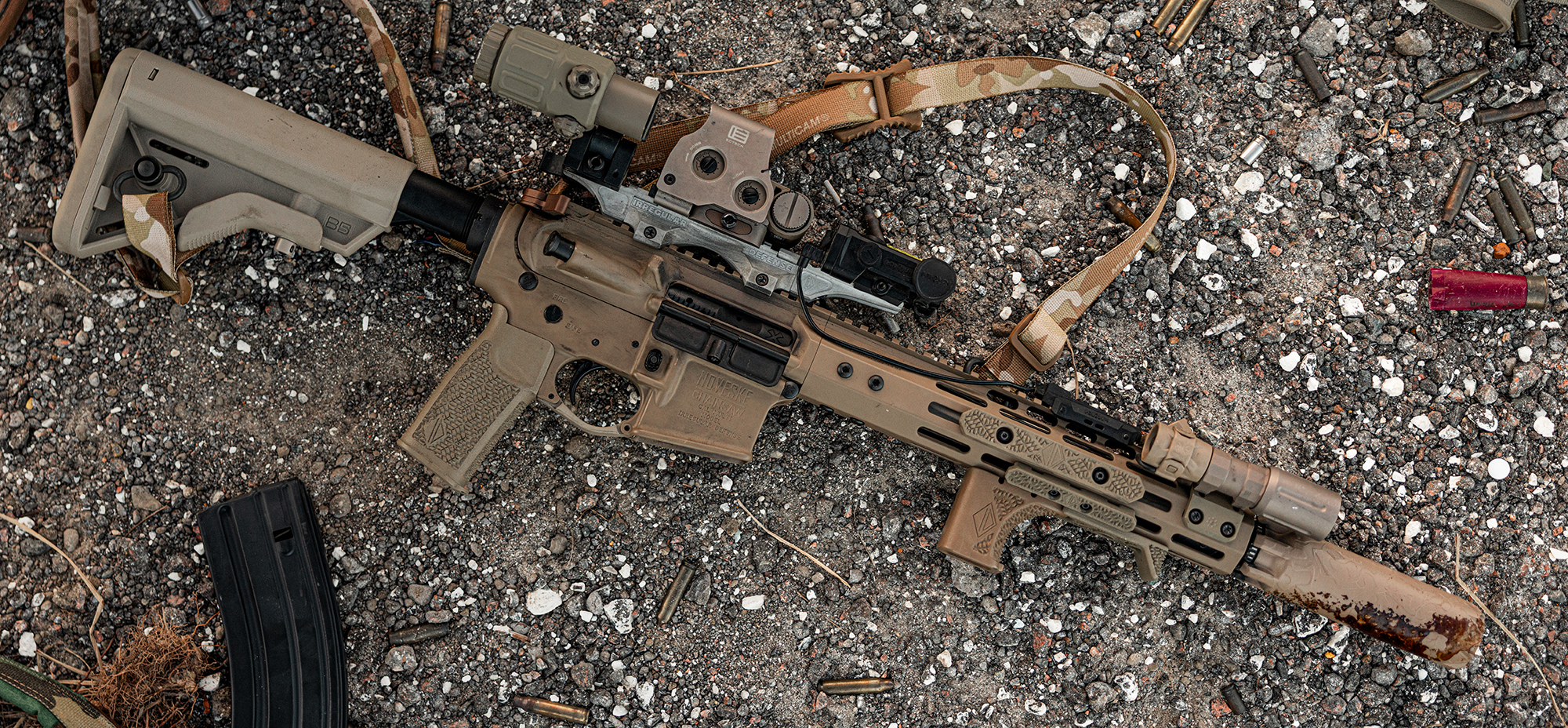

Repeated glowing-red sustained mag dumps are abuse, not ordinary use. That is a shortcut to unnecessary wear no matter who made the can.
The minimum recommended barrel length for current 5.56 / 6mm rifle suppressors is 10.3 inches. Going shorter increases blast baffle erosion and raises projectile stability risk.
Only shoot up to the caliber engraved on the suppressor. This is not a gray area or a place for "close enough" logic.
The short version is that most problems come back to setup logic, interface cleanliness, host expectations, or misunderstanding what the product was trying to optimize in the first place.
Start with the mechanical basics before chasing stranger theories.
Correct mounting should feel repeatable and positive, not vague. Roughly 15 ft-lbs of suppressor input torque is enough to generate approximately 1,700 lbs of clamping force at the taper, so the interface should feel mechanically committed once properly seated.
Under normal installation, threadlocker is not required, and timing is not required for the HFH or Flow Enhancers. The important thing is correct installation torque at the barrel and clean, proper interface engagement.
A slight rear gap is one of the signals that the suppressor is actually seating on the taper. If there is no gap, the suppressor may be bottoming on the ring face instead of loading the taper the way it was designed to.
What the rifle is doing still matters, even with a very good can.
Start by checking mount seating, gas settings, and host behavior. A lower-back-pressure suppressor can improve the system, but it cannot magically erase poor host tuning or a bad interface condition.
For current 5.56 / 6mm rifle suppressors, the minimum recommended barrel length is 10.3 inches. Below that, blast baffle erosion increases and projectile stability risk climbs with it.
That is where the Flow Enhancer logic usually wins. Those devices are for rifles that mostly live suppressed and accept worse unsuppressed flash behavior in exchange for better suppressed behavior.
Why these products were built this way instead of the easier way.
Titanium wins on weight. Inconel 718 wins in hot suppressor environments where thermal shock resistance, erosion resistance, high-temperature strength, and long-term durability matter more.
17-4 PH is capable, but inferior here in galling resistance and high-temp durability. Haynes 282 is more optimized for sustained turbine conditions than for the thermal shock profile suppressors actually see.
If something feels wrong, stop trying to outvote physics.
In most cases, walk-off means the taper was not fully seated or the interface was dirty. That is where the troubleshooting should begin, not at the far end of the theory tree.
Clean the interface, confirm taper seating, repeat the 5 to 7 break-in cycles if the system is new, and verify that the rear gap looks normal. Most "mysterious" early issues get solved there.
An alignment rod is the cleaner answer when you have one, but at minimum you should still perform a careful visual field check. If anything looks questionable, stop there and inspect before firing.
Long life starts with realistic use and direct communication.
No. These suppressors are monolithic and not user-serviceable internally. Deep cleaning can include a 50/50 Simple Green and water soak, with optional ultrasonic assistance, but do not attempt to disassemble the suppressor.
LE / MIL discount and T&E paths should absolutely be part of the conversation. This is the kind of question worth bringing directly to us so the right configuration, expectation set, and program path get matched up correctly.
Reach out. One of the strongest parts of the brand is that users can get answers from the people who actually understand how the product was designed, instead of being trapped in a generic support maze.
Administrative friction is still part of the real buyer experience.
Know your host plan, know which device logic fits that plan, know whether you need a HUB path, and make sure the suppressor/device pairing is actually correct before the transfer process begins. Administrative delays are annoying enough without adding the wrong hardware to the mix.
The point of this page was never to sound polished for its own sake. It was to make the system easier to understand, easier to set up correctly, and harder to misuse.
A good suppressor system should not feel mysterious once the logic is laid out clearly. It should feel like a set of deliberate engineering choices: the taper doing the real locking work, the Hesion Bow providing redundant retention, the gas path getting handled early, and the materials being selected for actual thermal reality rather than brochure value.
If your setup still feels off, stop and inspect. If your use case is unusual, ask. If you are evaluating for LE / MIL or trying to make the right decision before a transfer, ask that too.
The best outcome here is not just that the page answered your question. It is that the rifle, suppressor, and shooter all end up on the same page before the first serious firing string starts.

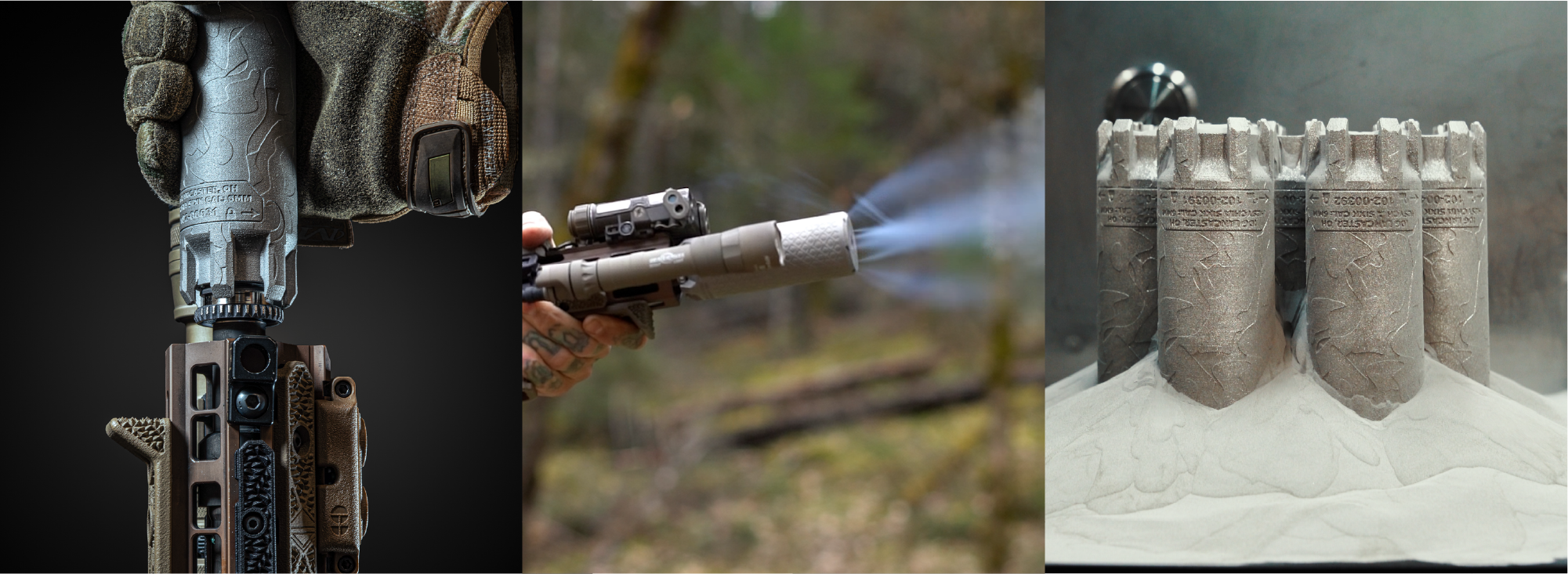

A lot of suppressor writing starts at the end of the story and never explains the actual design intent that created those outcomes in the first place.
Our logic is different. The system is trying to do real work for the shooter, not just trap more gas and hope the host tolerates it.
The core idea is not complicated: the suppressor should mount like precision hardware, stay mechanically sure of itself, manage gas in a way that improves shootability, and survive the thermal reality of hard rifle use without pretending that brochure materials are the same thing as durable materials.
That is why the system leans on a taper-first mounting logic, a redundant retention system in the Hesion Bow, additive-manufactured internal geometry that actually changes what gas can do inside the body, and Inconel 718 instead of a lighter but less thermally comfortable answer.
If the job is a rifle suppressor, the material conversation has to start with thermal shock, erosion, and real use cycles, not just low weight or exotic-sounding names.
The right answer here for high-temp strength, thermal shock resistance, erosion resistance, corrosion resistance, and LPBF maturity.
Excellent for weight. Less comfortable once the conversation becomes hard heat, sustained punishment, and long-term rifle suppressor durability.
Capable, but a step down here in galling resistance and high-temperature durability relative to what the system is trying to accomplish.
Optimized more for sustained turbine-type conditions than for the violent thermal shock profile suppressors actually live through.
The best suppressor experience usually does not come from chasing one magic spec. It comes from stacking a lot of correct decisions together: the right host logic, the right muzzle device logic, a mounting interface that behaves like precision hardware, internal geometry that serves the shooter, and materials chosen for the world the rifle actually lives in.
That is what this system is trying to be. Not vague "performance." Not a collection of marketing adjectives. Just a suppressor system that makes more sense the longer you spend with it.
