Most suppressor pages are spec sheets pretending to be engineering, or ad copy pretending to be honesty. This is neither. This is what the system is actually doing, what tradeoffs we chose on purpose, and why those choices matter once the can is on a real rifle.
The original problem was never "make a compact silencer." It was "fix the things that actually suck when people run rifles hard."

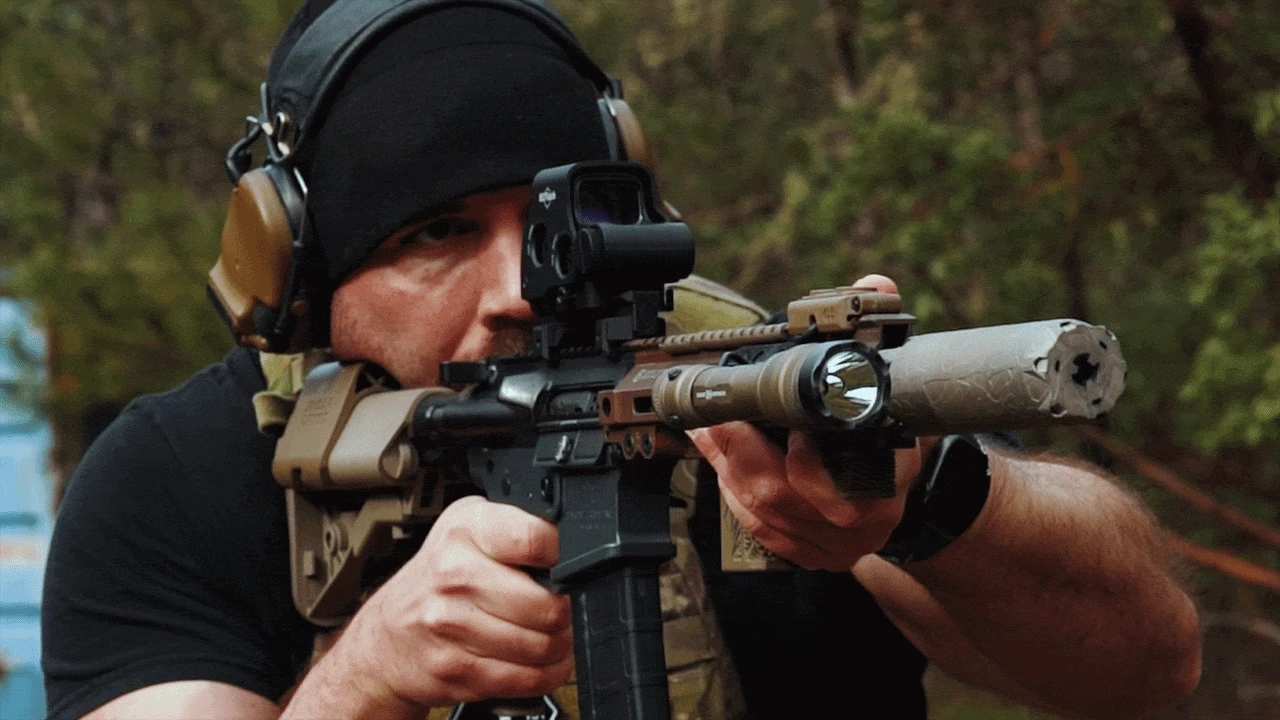

That emphasis came from real dissatisfaction with high-backpressure cans that left shooters covered in carbon and breathing garbage, especially on short barrels and in enclosed training environments. That decision shaped every other compromise that followed.
We designed a suppressor system that does not need any tuning for any firearm host it mounts to. If the customer has to spend additional money on adjustable gas blocks, heavier buffers, or different springs just to make our suppressor work on their rifle, then we did not hit our goal. The whole point is a coherent system that adds onto an already efficient platform without fighting it. Can you tune your firearm to run our products even better? Absolutely. But it is not required, and that is a big distinction from most other high-backpressure suppressors on semi-auto hosts.
Every suppressor lives and dies by six pillars of performance. No can maximizes all six. The question is which ones matter most for how you actually shoot. Here is how priorities shift depending on the mission.
We optimized primarily for tone, flash, gas management, and durability. That means military and hard-use duty applications are where these cans make the most sense. If your single biggest priority is the lowest possible muzzle dB number and nothing else matters, there are lighter, quieter options. We chose a different set of tradeoffs on purpose.

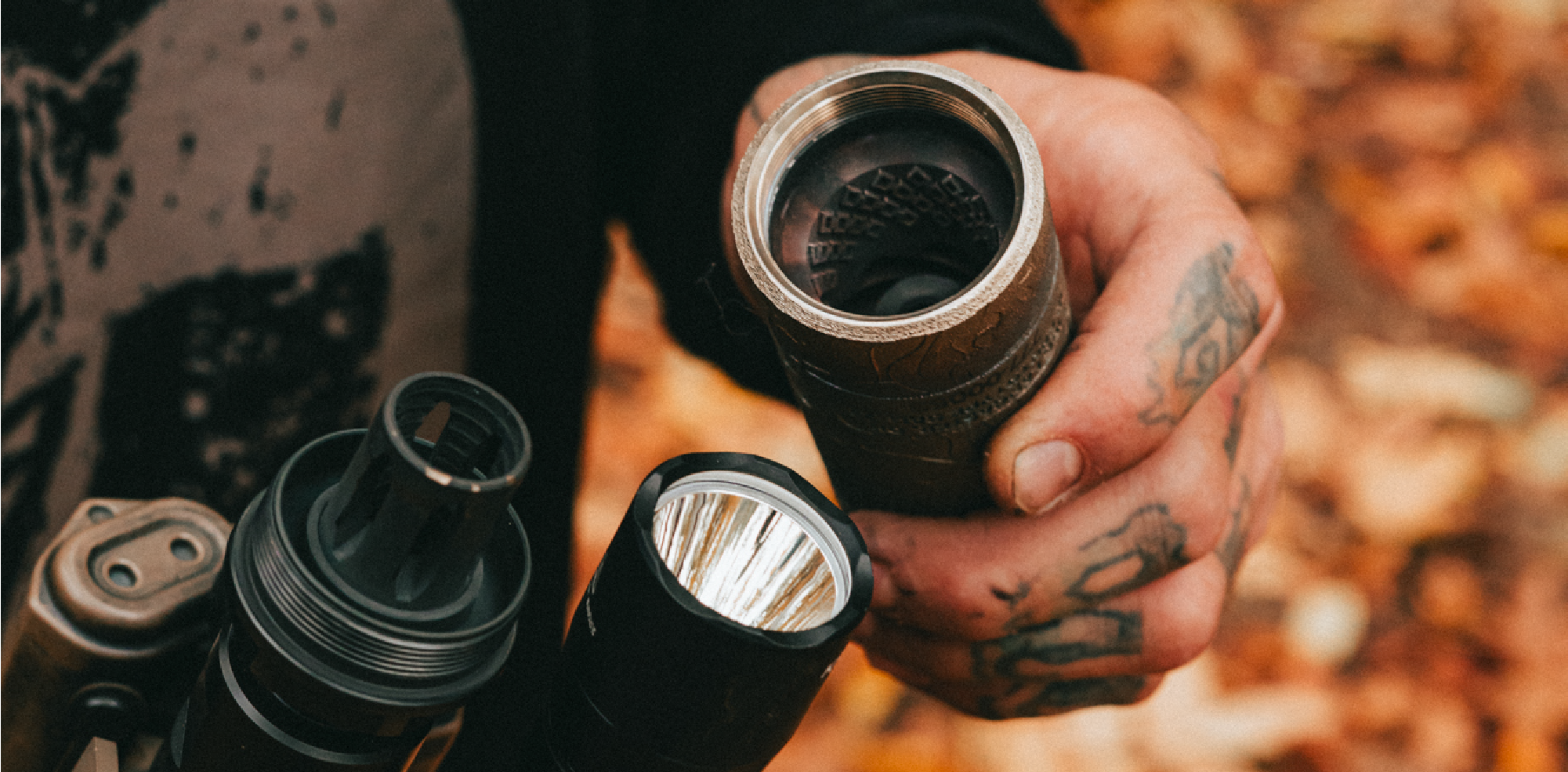

Most cans treat the blast chamber like a big empty waiting room. We start doing work immediately.
The muzzle device, blast chamber, early intake geometry, and first redirections matter more than most suppressor marketing will ever admit. That is where the real leverage is.
Gas enters a radial diamond structure in the initial chamber, gets disrupted and cooled, then gets pulled into annular pathways early. Before the first blast baffle has a chance to become a pressure traffic jam.
Let pressure stack in the blast chamber, then try to deal with it downstream. The shooter eats the bill in gas, flash, and tone.
Move pressure off the muzzle immediately and distribute it across the entire suppressor. The gun cycles more like itself.

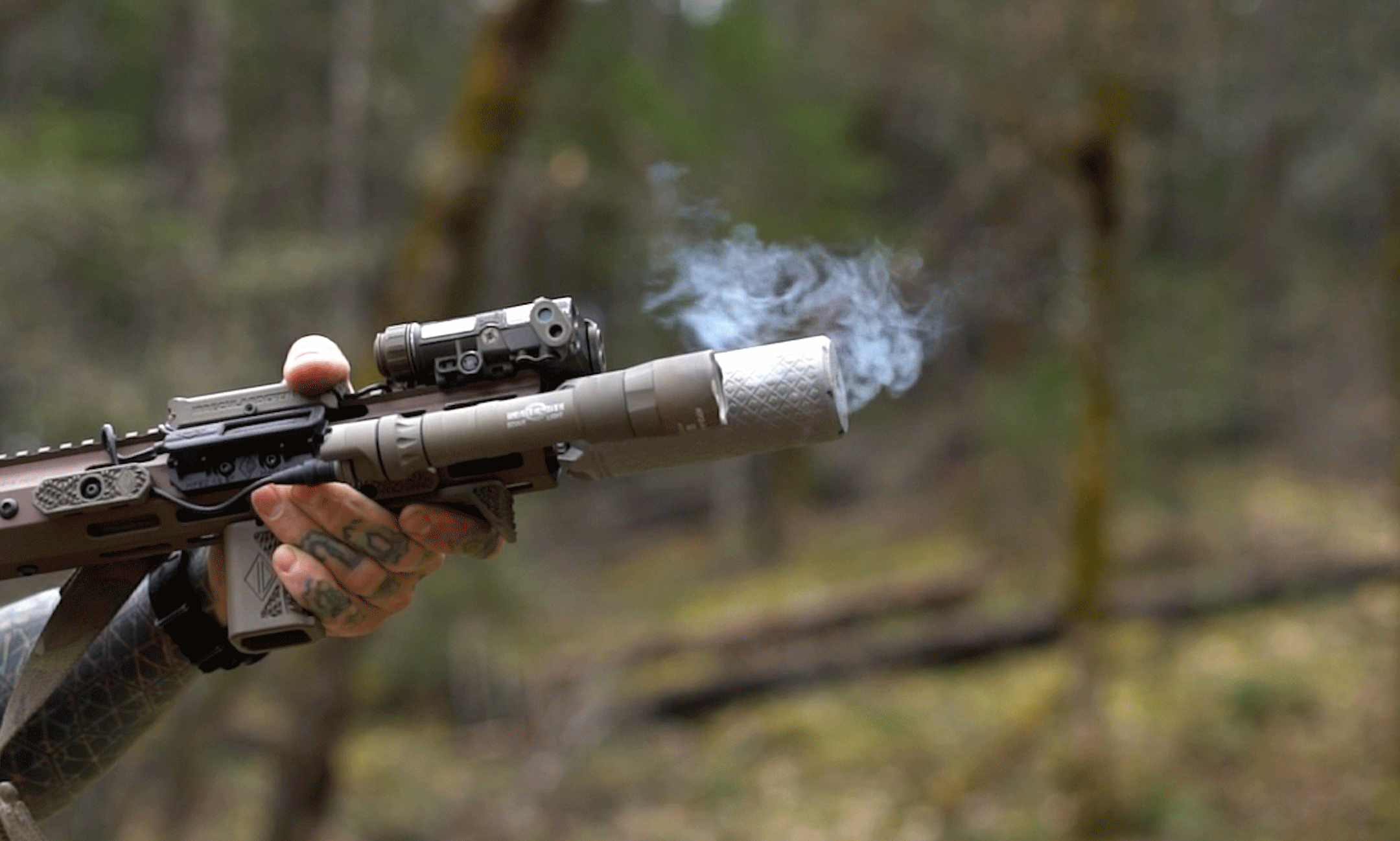

A lot of suppressors use the annular space as a glorified bleed-off. Gas escapes, but it is wasted instead of processed. We treat it like a second-stage gas management system.
Gas is intentionally routed into the skin of the can, kept in separate captured pathways, and moved back and forth through multiple helix paths. Streams do not all collide at once or blast straight to the nose.
That separation matters because uncontrolled re-mixing is where small suppressors get nasty. Sharp tone, flashy exits, pressure events stacked at the wrong moment.
We put the high-pressure zone at the distal end of the suppressor instead of leaving it concentrated at the muzzle. Once that pressure is released forward, the resulting low-pressure region behind it pulls preceding gas along. That Bernoulli-driven behavior is what we validated repeatedly during testing. The annular region is not there to let gas escape. It is there to move gas where we want it, when we want it.

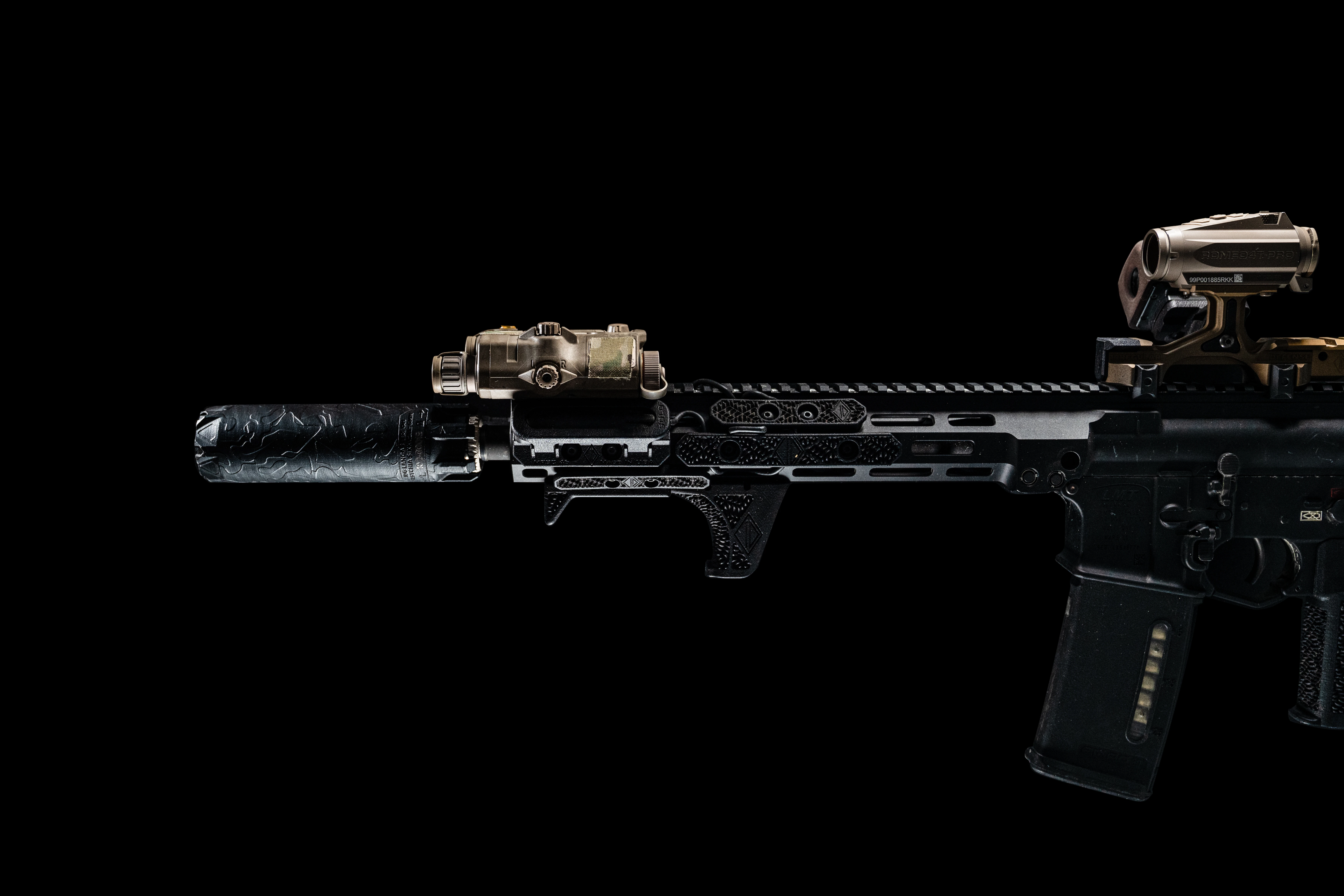

The term "Multi-Stage Hybrid Core" only matters if it cashes out in actual geometry. In the SIXK and 556UK, it does.
Asymmetric baffles, early annular intake, captured helix routing, controlled internal exits, and shielded forward ports all working together as one architecture. Not disconnected tricks. Both the SIXK and the 556UK share these same asymmetric design features, applied to their respective form factors.
We avoid the lazy version of asymmetry, which is radial tricks that can induce cross-jetting and mess with point of impact. Instead, the variation is deliberate and axial. Down the length of the can. Different sections are intentionally given different rates of flow so the suppressor spreads the off-gassing window over time.
We are not chasing the quietest number at the muzzle. The SIXK and 556UK both produce a lower, more pleasant tone with less violent pressure behavior at the shooter's ear while staying extremely short and abuse-tolerant. That is the tradeoff we chose on purpose.
The flow enhancers are not accessories in the normal sense. They are part of the suppressor's first-stage gas control, and leaving them out makes the rest of the story incomplete.
The Micro and Macro Flow Enhancers were developed around one idea: the highest-density gas right at uncorking is where the most leverage exists. Control that first pressure event correctly and the rest of the suppressor can behave better with less brute-force restriction.
When seated, the flow enhancer sits extremely close to the blast baffle and structures the blast chamber so pressure evacuates into the suppressor architecture instead of building up and hammering the bore. The Micro FE uses hollow tines to inject gas aggressively into the outer annular regions, feeding the helix paths and rapidly distributing pressure while the gas is still densest.

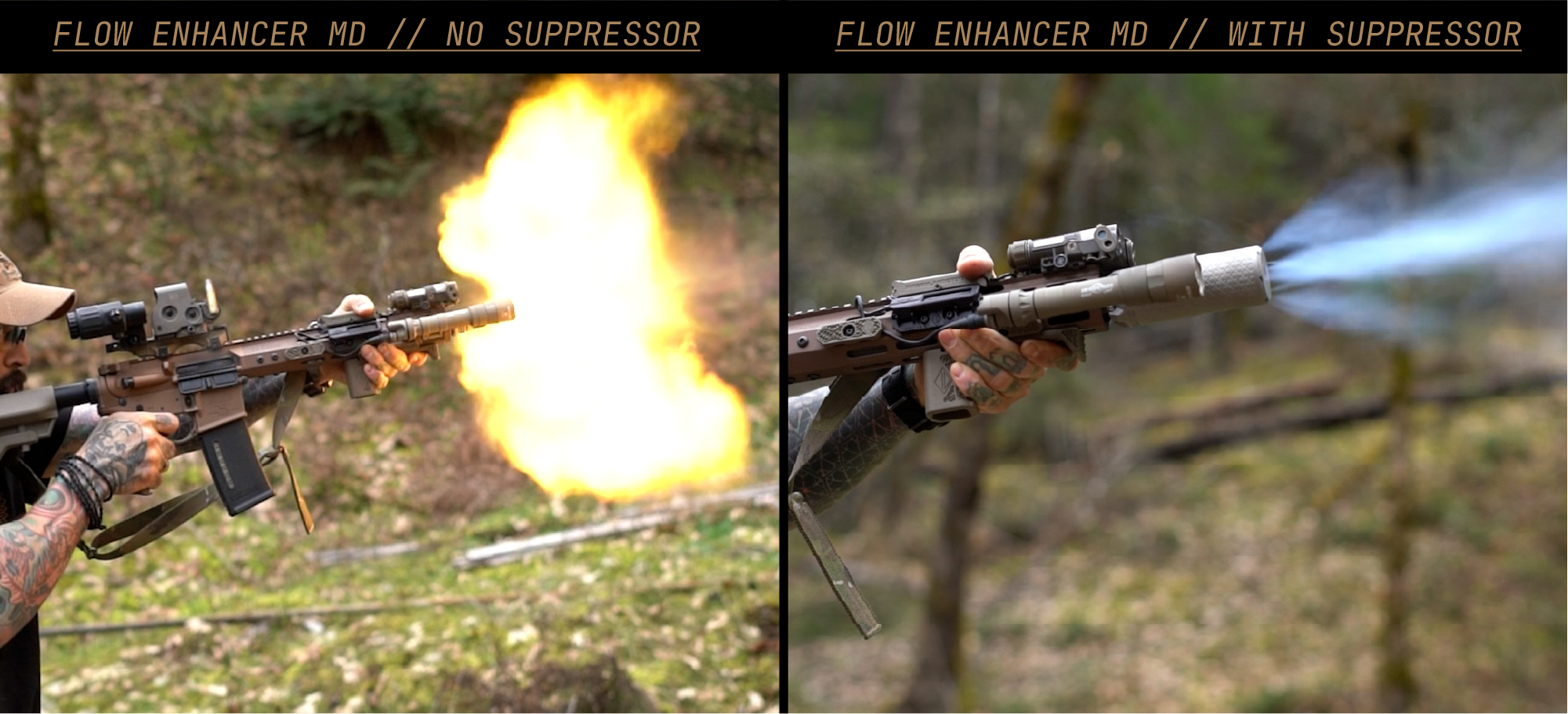

Dramatic fireballs by design. The flow enhancers maximize gas mixing on purpose.
That same aggressive mixing consumes fuel sooner and reduces the flash-producing junk left to reignite outside the can.
A muzzle device that is great unsuppressed is not automatically the best device once it lives under a suppressor. The flow enhancers deliberately sacrifice unsuppressed civility to maximize suppressed performance. That sounds counterintuitive until the system is understood as a whole rather than as isolated parts.
Flash control on short rifle cans is where marketing gets the most dishonest. Our approach starts by admitting the constraints.
Maximize the opportunity for primary flash to burn inside the suppressor before it ever reaches open air.
Avoid creating one giant fresh-air-meets-fuel event at the exit. Stagger the release.
Slow and shield final gas release so what does exit is less likely to light off in free air.
On the SIXK, we use secondary vents and a final internal baffle so gas cannot simply bleed out the front. The three functional nose ports are shielded internally. Gas has to impact internal structure before exiting. The integrated three-tine feature at the nose disrupts and manages what remains.
The 556UK manages flash with the same principles but biases toward a higher compartmentalized pressure zone. It forces the six exit ports to pull gas from the central core where mixing is at its highest, ensuring gas exits at an angle away from the bore path. That reduces the ability for latent unburned gunpowder to combust with any heat or fuel coming out of the central bore path.

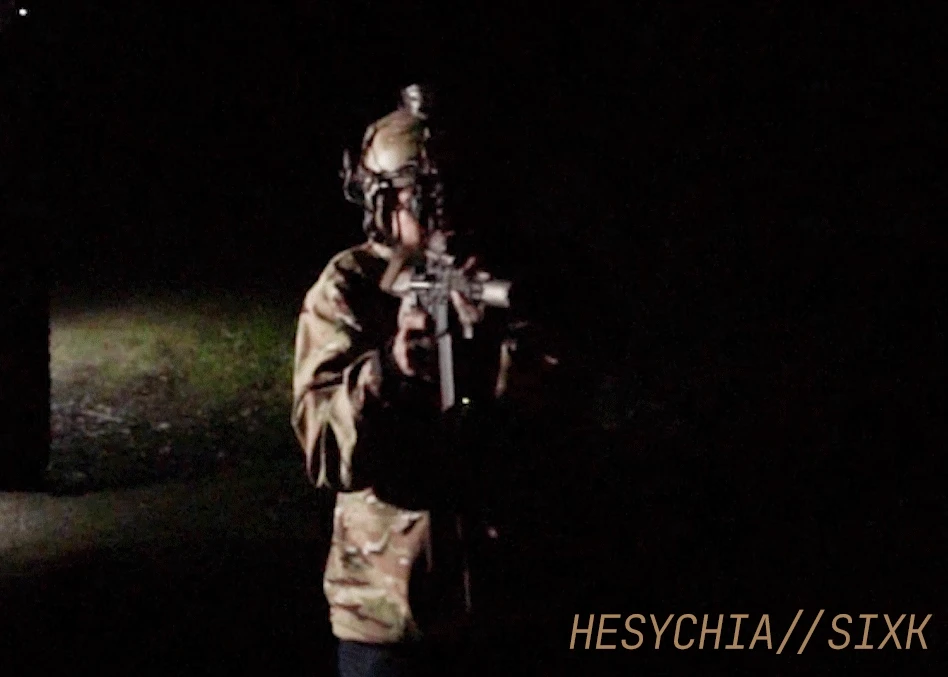

Our own testing showed prototypes with minimal visible flame in one region and much larger flame in another. The design target became consistent, low visual signature across realistic conditions. Not a cherry-picked claim from one location and one ammo lot.
The muzzle device is not an afterthought. The entire can is designed around what happens in that first instant after the bullet leaves the bore.

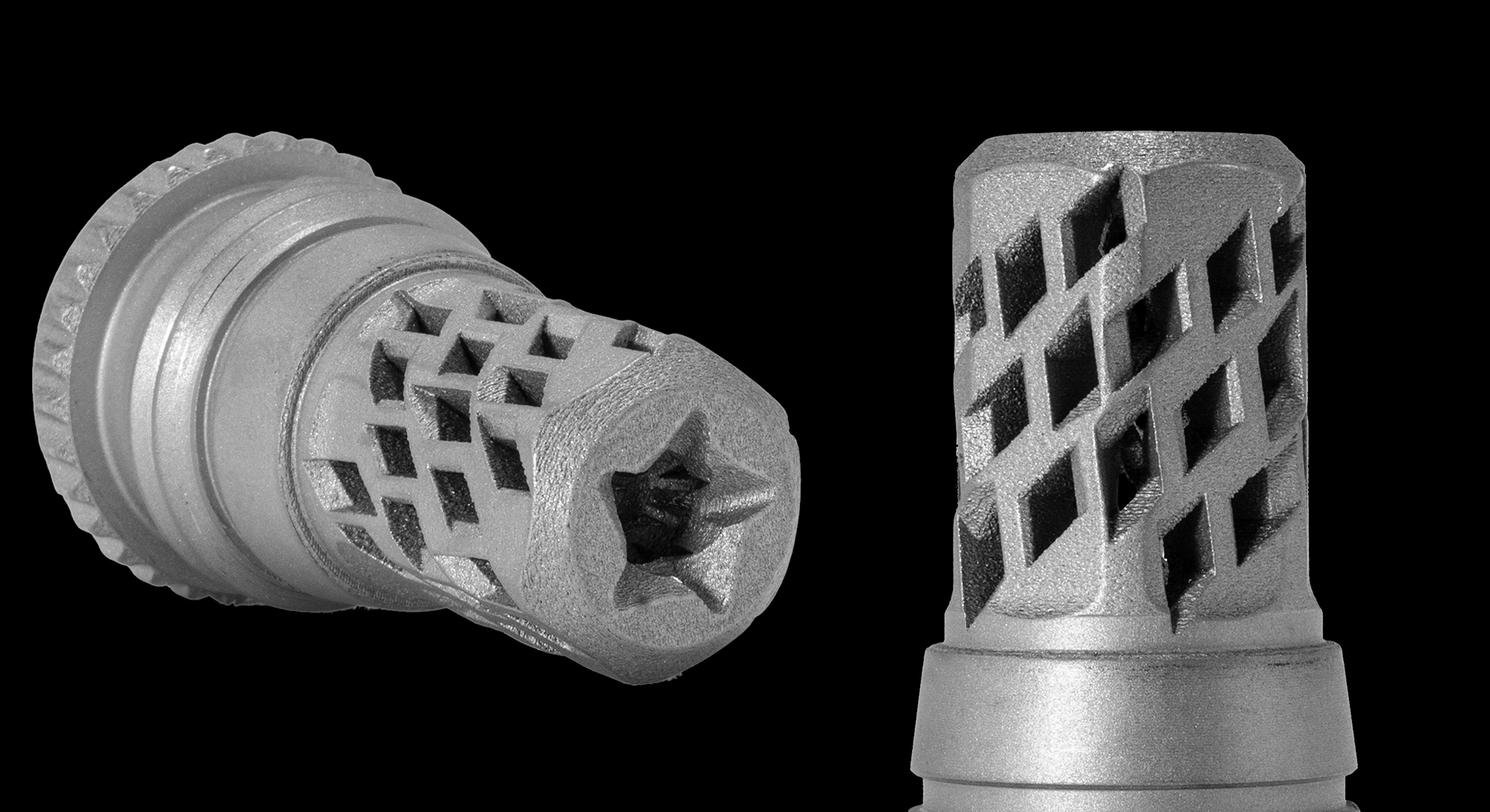

The Hybrid Flash Hider exists for shooters who want strong suppressed performance without giving up unsuppressed practicality. Its external diamond geometry is patterned to match right-hand gas rotation and vector gas into the annular intake.
Total vertical surface area behaves more like a brake than its shape first suggests, reducing recoil without the obnoxious side blast that usually comes with aggressive brakes. Untimed install with a 3/4-inch socket. Repeatable geometry, no fiddly timing games.
Different muzzle devices are meant for different host priorities. If the rifle spends meaningful time unsuppressed, the HFH is the more balanced choice. If the rifle lives suppressed, the flow enhancers give the can more leverage over flash, tone, and gas management. That preference is built into the architecture, not added as marketing after the fact.
The 556UK shows the same design philosophy applied to an even tighter 5.56-specific package, where every bit of internal space matters more, not less.
Same core priorities intact. Short overall length, low gas to the shooter, strong flash control for size, hard-use durability. But in a format where packaging efficiency is a much more visible part of performance.

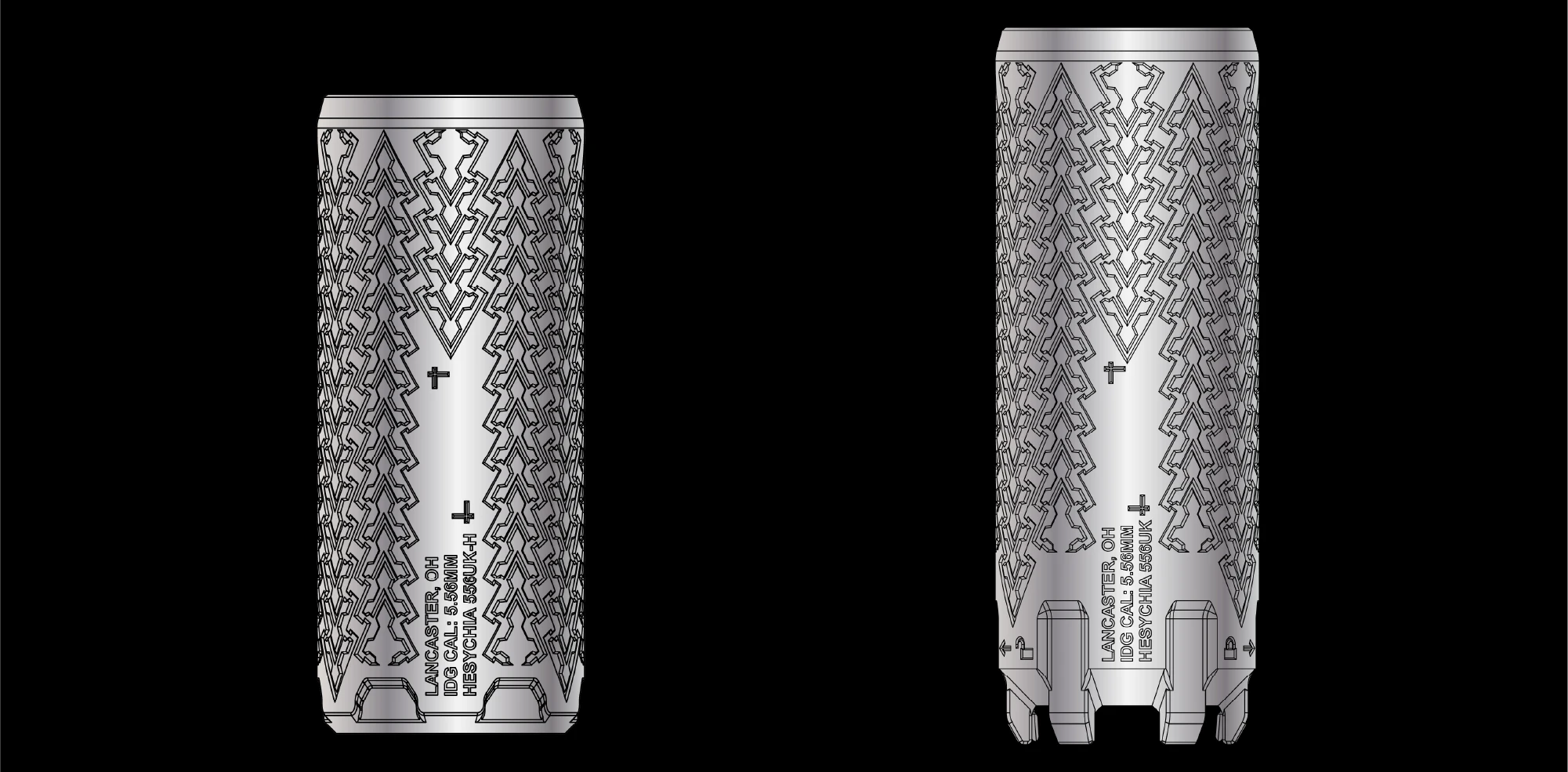

The native integrated locking system remains our preferred design direction. The HUB versions are still the same suppressor family and remain useful for shooters who need cross-compatibility. But the performance claims we make are tied to using our muzzle devices and the geometry that starts controlling gas at the muzzle device itself.
Large threaded region consumes space that cannot be used for gas pockets, disruption features, or flow-shaping geometry. Cross-compatible but compromised on volume.
Space around and between locking pawls is used for additional gas pockets and disruption. No added length. Maximum performance in minimum package.

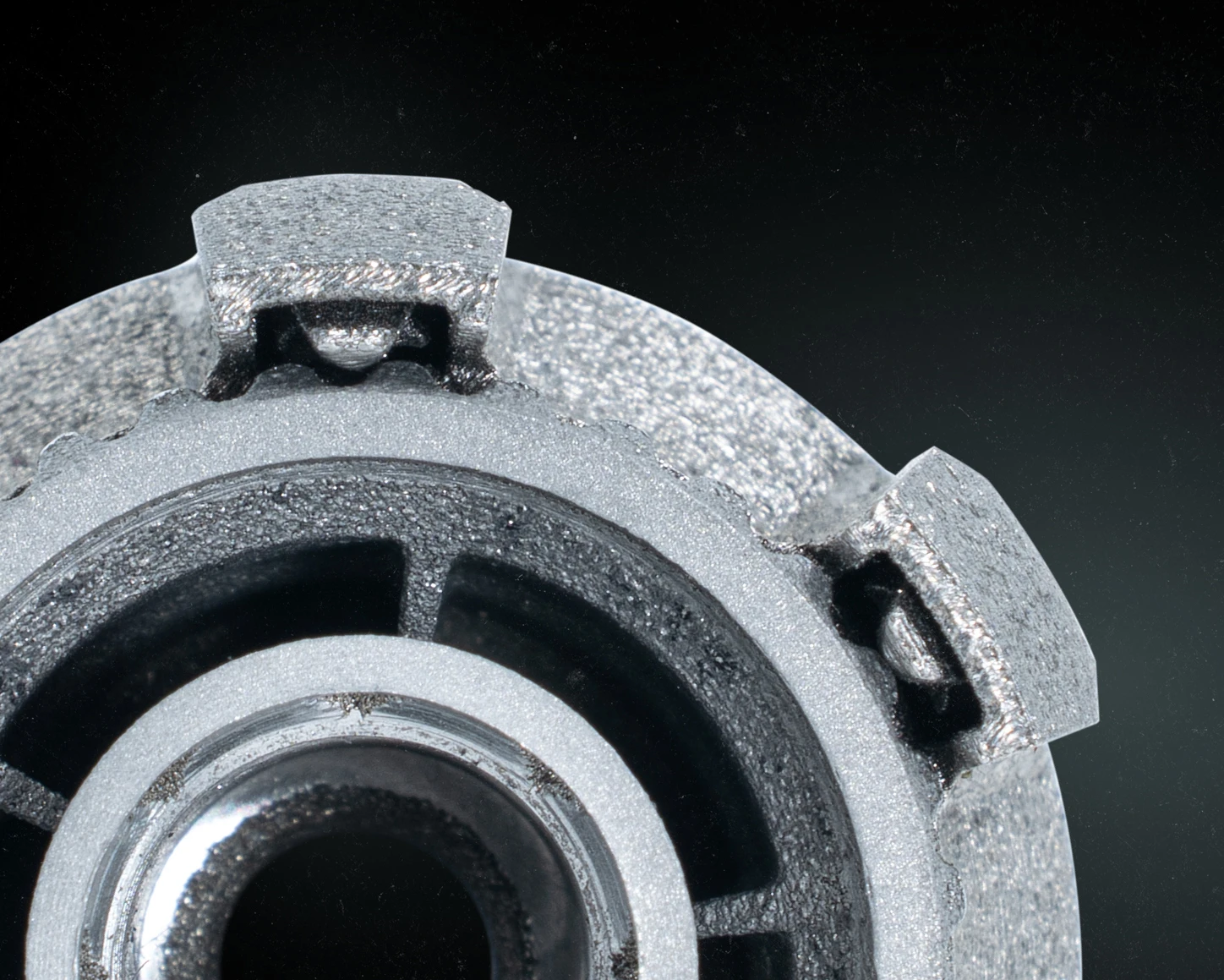

A lot of mounts promise security and simplicity at the same time, then give you one or the other once the gun gets hot. The Hesion Bow layers several retention mechanisms instead of pretending one feature can solve everything.
The primary lock is the left-hand American buttress thread combined with the 15-degree taper. At roughly 15 foot-pounds of hand torque, that gives you about 1,700 pounds of clamping force. That is what provides alignment, seal, and primary resistance to movement.
The six pawls are the redundant layer, not the main lock. The muzzle device uses 32 teeth and the pawl count does not divide evenly into that number. So at any stop point, at least one pawl is fully engaged and others remain loaded. Effectively zero backlash regardless of where rotation stops.
The coarse buttress thread transfers load efficiently, provides carbon relief behind the crest, and works with the taper instead of fighting it. Matched Inconel-on-Inconel thermal expansion means the system avoids both walk-off and thermal seizure.

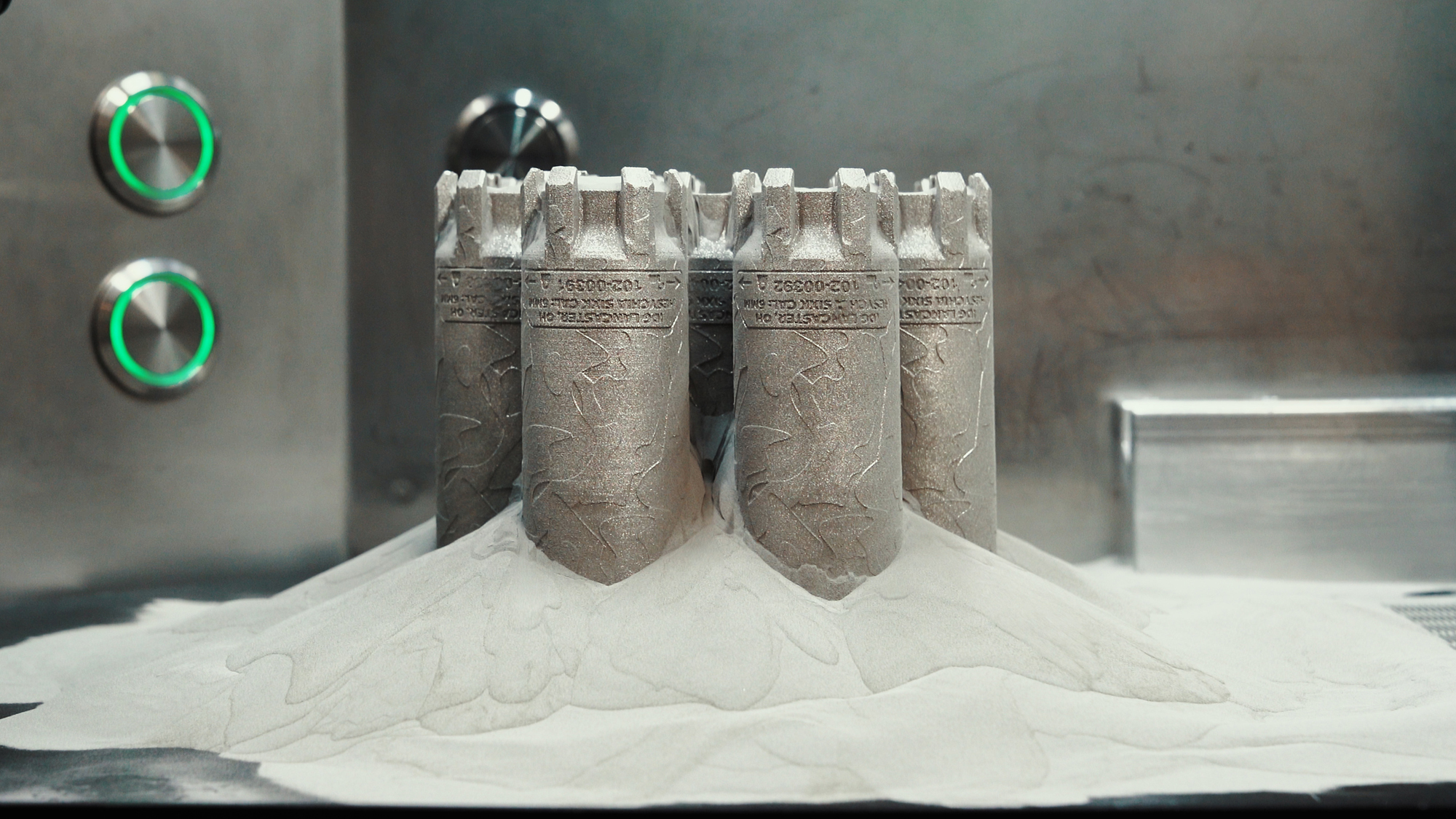

Additive manufacturing is not the story because it is trendy. It matters because the gas management architecture would be crippled if it had to be designed around drill paths, lathe access, or simple stacked components.
Laser Powder Bed Fusion in Inconel 718 is what makes early annular intakes, captured helix paths, shielded ports, monolithic pawls, heavy internal filleting, and complex exterior textures possible in one printed structure.
CNC finishing is used only on the interfaces that actually demand tight tolerances. Critical faces, threads, and tapers. Additive is not replacing subtractive work. It is expanding what the geometry can be before precision machining finishes the high-tolerance surfaces.
We ran dozens of prototypes because the workflow was CAD, print, machine, test, compare, repeat in short loops. That pace is what moved the design from broad concepts to specific validated geometries instead of declaring version three "good enough" and shipping.
Suppressors live in one of the harshest thermal and erosion environments in small arms. The material is not an aesthetic choice or a marketing bullet point. It determines how the can performs, survives, and ages under real conditions. Here is how the four materials we evaluated compare across the properties that actually matter.
| Property | Inconel 718 | Titanium | 17-4 PH Stainless | Haynes 282 |
|---|---|---|---|---|
| Density / Weight | Moderate weight. Heavier than titanium but competitive with steel-class alloys. Appropriate for duty and hard-use builds where durability matters more than weight savings. | Lightest of the four. Significant weight advantage for weight-sensitive builds and hunting applications. The primary reason titanium remains popular despite other trade-offs. | Moderate. Comparable to Inconel in density. No significant weight advantage over nickel superalloys but also no penalty. | Moderate. Cobalt-nickel base adds density similar to Inconel 718. Weight-neutral compared to other high-performance alloys. |
| High-Temp Strength | Excellent. Retains mechanical properties above 1200°F. The benchmark for suppressor core materials under sustained cyclic heat load. | Degrades significantly above 800°F. Under sustained suppressed fire, titanium components can soften, creep, and lose dimensional stability in critical areas. | Moderate. Adequate for light use but softens under sustained heat. Not a reliable long-term choice for high-cyclic-rate platforms or short barreled applications. | Overqualified. Haynes 282 retains strength at temperatures well beyond what shoulder-fired intermediate cartridges will ever produce. At the temps where H282 truly separates from IN718, you are melting barrels and shooting ammo volumes that have no precedent in combat or hard use. The temperature ceiling is real, but it is solving a problem that does not exist outside of YouTube torture tests. |
| Erosion Resistance | Excellent. Proven in LPBF suppressor cores under real-world high-velocity gas erosion. The internal geometry holds integrity through extended use. | Moderate. Wears faster under high-velocity gas and particulate erosion than nickel superalloys. Internal features degrade more quickly on high-round-count platforms. | Moderate. Adequate at lower pressures and temperatures but not exceptional under the erosion conditions of a short-barrel suppressor running hard. | Excellent. Cobalt-base chemistry provides a meaningful erosion resistance advantage. Potentially superior to Inconel 718 in the highest erosion zones of the suppressor. |
| Galling Resistance | Good. Threaded interfaces stay serviceable through repeated mounting cycles, even with carbon fouling and thermal cycling at the interface. | Poor. Titanium is notorious for galling on threaded interfaces, especially under heat and load. Titanium-on-titanium or titanium-on-steel threads require lubricant and careful torque management, or they seize permanently. | Prone to galling. Stainless-on-stainless thread seizure is a real-world failure mode. This is a known problem with 17-4 in suppressor mounting applications under heat. | Good. Cobalt-nickel chemistry resists adhesive wear at thread interfaces. Comparable to Inconel 718 in real-world mounting durability. |
| LPBF Maturity | Proven. The most established nickel superalloy in Laser Powder Bed Fusion. Parameter sets are mature, qualification data is deep, and we have extensive in-house experience validating printed geometry in this material. | Developing. Titanium LPBF parameter sets are still evolving for complex suppressor geometry. Porosity, microstructure control, and internal channel quality require more qualification work than IN718. | Widely printed but less relevant here. 17-4 LPBF is mature for structural parts, but the thermal ceiling of the material makes that maturity less useful for suppressor cores running sustained heat. | Limited. Haynes 282 LPBF is promising but parameter development is early. Supply chain and qualification data are not yet at the level of IN718 for this specific application. |
| Thermal Cycling | Excellent. Inconel 718 handles repeated heat-cool cycles without cracking, warping, or losing dimensional stability. The gamma double-prime strengthening mechanism is inherently resistant to thermal fatigue, which is exactly what a suppressor sees on every string of fire. This is the primary reason our internal geometry survives long-term. | Poor. Titanium's coefficient of thermal expansion and relatively low creep threshold make it vulnerable to cumulative distortion under repeated cycling. Components that fit perfectly cold can grow, shift, and never return to spec after sustained use. Baffle stacking interfaces are especially vulnerable. | Moderate. 17-4 PH handles mild thermal cycling adequately, but the hardness gained from precipitation hardening can degrade with repeated excursions above the aging temperature. Over time, the material softens in exactly the zones that see the most heat. | Mixed. Haynes 282 was engineered to get hot, stay hot for hours, and then gradually cool. That is a fundamentally different thermal profile than what a suppressor sees, which is rapid heating and rapid cooling on every string of fire. Under true thermal cycling, H282 does not handle the repeated shock as well as Inconel 718. Its advantage is sustained temperature, not repeated transitions. |
| Flash Resistance | Excellent. Inconel 718 forms a stable, adherent chromium oxide layer that resists oxidation at sustained operating temperatures. Internal suppressor surfaces maintain their geometry and finish quality without scaling or spalling, which directly affects gas flow consistency and flash management over the life of the can. | Moderate. Titanium forms a protective oxide layer at lower temps, but that layer becomes less stable above 800°F. At suppressor operating temperatures, titanium can discolor, scale, and lose surface integrity in the areas that matter most for flash control geometry. | Moderate. 17-4 PH stainless has reasonable oxidation resistance at lower temperatures, but it does not form the same quality of protective oxide layer as nickel superalloys. Surface degradation under repeated high-temp exposure gradually reduces the effectiveness of flash-management geometry. | Excellent. Haynes 282 has outstanding oxidation resistance at extreme temperatures. The cobalt-nickel base forms a highly stable oxide barrier that protects internal geometry. Flash management surfaces stay intact well beyond the threshold where other materials begin to degrade. |
| Post-Processing / Handling (EHS) | Favorable. Inconel 718 is non-reactive in its solid and machined state. Machining chips and powder handling follow standard metalworking protocols without requiring inert atmosphere or specialized containment. Post-print heat treatment and CNC finishing are straightforward with conventional tooling. No exotic EHS requirements for storage, transport, or shop floor handling. | Significant EHS concerns. Titanium chips and fine powder are pyrophoric, meaning they can spontaneously ignite in air. Machining requires strict fire suppression protocols, specialized coolant management, and often inert atmosphere for powder handling. Every step from print to finish carries elevated safety overhead and facility requirements. | Favorable. 17-4 PH behaves like standard stainless steel in post-processing. No pyrophoric risk, no exotic handling requirements. Machinability is excellent with standard tooling. The easiest of the four to process from a shop floor and EHS perspective. | Elevated concerns. Haynes 282 contains cobalt, which introduces inhalation toxicity concerns during machining and powder handling. Proper respiratory protection and dust collection are required. Not as severe as titanium's fire risk, but a meaningful step up from the standard handling protocols of Inconel 718 or stainless steel. |
| Cost vs. Performance | Optimal. Best balance of high-temperature capability, erosion resistance, LPBF processability, and cost. Our choice for the SIXK and 556UK because it earns its price across all relevant performance axes. | High cost. Titanium powder and LPBF processing carry a premium, and the performance ceiling in high-heat applications limits the value proposition for duty-class suppressors. | Lower cost. Commodity pricing and easy machinability make 17-4 attractive for cost-sensitive applications. But the thermal ceiling is a real limitation that makes the savings less meaningful for our use case. | Turbine-grade pricing. The performance premium of Haynes 282 is real, but supply chain constraints and early LPBF qualification make it a future-watch material rather than a current production choice. |
Inconel 718 is not the lightest, not the cheapest, and not the absolute peak of high-temperature performance. It is the material that does everything well enough at a cost that makes sense for what we are building. The internal geometry we designed only works reliably in a material that holds its shape, resists erosion, and survives thermal cycling. IN718 does all of that while being the most mature and validated LPBF nickel superalloy available. That is not a default choice. It is the right one.
Slade and Sean did not set out to build the suppressor with the best number on a spec sheet. We designed what we wished existed when we were running rifles hard and coming back from training covered in carbon, ears ringing, dealing with mounts that walked off in the cold and carbon-locked in the heat.
The three of us bring a pairing of skills and experience that does not exist anywhere else in the defense space. Each one brings a dense, specific set of knowledge that makes the team surgically accurate with every iteration we pursue. This is not guesswork. This is reps.
Sixteen years as a SEAL, with his final stretch at the Command focused on RDT&E. That shift from operating to evaluating gave Slade a more academic lens for vetting gear, choosing equipment on behalf of mates still in the fight. It built an attention to detail and a habit of questioning the state of the art that carried straight into weapons development after service. Question everything. Validate anything. Never accept standard.
Thirteen years as a Reconnaissance Marine paired with discipline across multiple manufacturing and design methods. That combination lets Sean iterate real-world products at a pace that large engineering departments struggle to match. Self-taught designer, manufacturer, and entrepreneur with no interest in the status quo. Shooter first, designer second, manufacturer third. The path from concept to a range-ready product is short, and it lands more often than not.
Over 45 years in manufacturing, 25 of them in additive. Tim was part of the organization that brought the first LPBF printers to America out of Cincinnati. That depth of experience in the defense space belongs to a very short list of people, and it gives us an edge in rapid prototyping and the institutional knowledge to make sure what Slade and Sean design actually moves the needle instead of repeating what the rest of the industry already settled for.
Here is what we built toward, and why each one mattered:
A more restrictive can may edge the SIXK or 556UK at pure muzzle dB on some hosts. That is a real thing, and we will say it plainly. If you need the absolute quietest number and nothing else is a concern, there are other options. We built these cans for the shooter who runs strings of fire, runs hot calibers, trains hard, and needs a suppressor that stays pleasant and manageable through all of it. That is not a consolation prize. That is exactly what we were trying to build.
